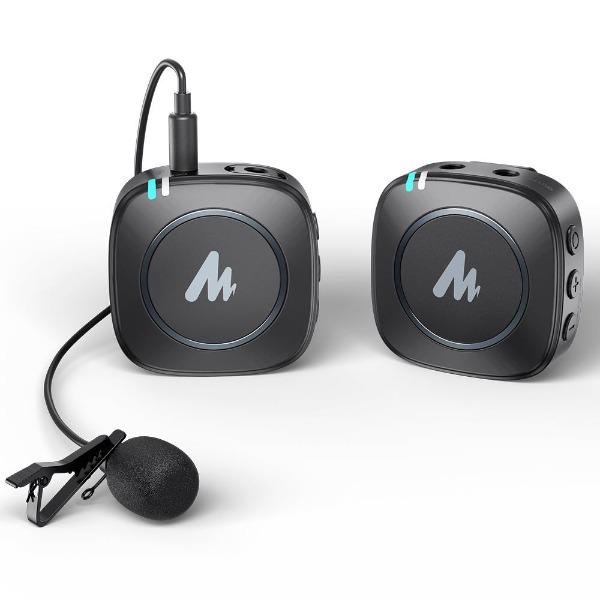

Here is my review of the AU-WM820 wireless system. The kit includes a transmitter, receiver, charging cables and a windscreen for the transmitter’s built-in microphone. The official retail kit also includes a plugin lavalier which did not arrive with the special review unit I received. I am impressed at the ease of setup, connectivity and general quality for under US$100. I also much appreciate that the Maono AU-WM820 indeed includes a windscreen for the transmitter’s built-in microphone. I find it very good for the price. However, there is one detail you should know about, as I’ll cover ahead.

Connectivity

The transmitter in the Maono AU-WM820 kit has a 3.5 mm TRS input jack to use with the (normally) included omnidirectional lavalier, or any other that has that type of plug.

The receiver in the Maono AU-WM820 kit has a 3.5 mm TRS stereo jack to plugin your headphones, plus another 3.5 mm unbalanced TRS stereo jack to feed whatever device you would like, which will likely be a camera, camcorder, mixer, smartphone or tablet. The WXM22 kit includes two audio cables for that purpose:

• One of the cables terminates in a TRS 3.5 mm plug to use it with a camera, camcorder, mixer or audio recorder. If your camera, camcorder, mixer or recorder only has an XLR input, you’ll simply need an adapter from 3.5 mm TRS to XLR male.
• The other cable terminates in a TRRS 3.5 mm plug to use it with a smartphone or tablet with that type of a connector (like my Google Pixel 4A) or with one that can only accepts Lightning or USB-C. For either of those digital inputs, you’ll need an adapter/converter which is not included with the Maono AU-WM820, but may have come with your smartphone.

See my 2015 article TS/TRS/TRRS/TRRRS: Combating the misconnection epidemic, illustrated above..

Technology and channels

The Maono AU-WM820 kit uses the 2.4 GHz band. The kit I received was already paired.

There is an optional auto-pair mode, but I didn’t need to use it.

Batteries and battery life

The battery inside the transmitter and receiver built-in li-po battery 350ma/3.7v.

They are rechargeable via the USB-C port. (No charger is included—Just use one that you already have.) Maono rates the autonomy (working hours) as six hours.

Live monitoring but not latency free to a human perception

Unlike the last few wireless systems I have tested, I was surprised to notice latency (delay) when monitoring live through the 3.5 mm stereo jack on the received of the Maono AU-WM820 receiver. (With the other wireless systems I have tested this year, I did not perceive any latency.) Since I did not find that spec online or in the manual, I contacted Maono to find out what the rated latency is for this unit. The response was that it has: “about 20 ms or less”. (For those unfamiliar, audio latency/delay is typically measured in milliseconds or thousandth of a second). This rating of 20 ms in the Maono AU-WM820 is substantially more latency (delay) than —for example— the rated latency of the RØDE Wireless Go II, which is only between 3.5 to 4 ms. When I tested the US$299 RØDE Wireless Go II (reviewed here), the latency was imperceptible to me. However, I definitely noticed it with the Maono AU-WM820 which is why I checked about its rating. Of course, it should be noted that the AU-WM820 costs a third of the price and is a single channel system, while the US$299 RØDE Wireless Go II is dual channel system and includes built-in recording, so it is not fair to compare them.

Does this latency issue matter?

Certainly, the latency does not degrade the audio quality. As long as you (the sound person) are not speaking while monitoring (which would be quite unusual for a wireless system except for initial setup), it won’t bother you much to you hear 20 ms delay in your headphones from other voices, not your own voice.

What about audio/video lip sync?

At 20 ms, the Maono AU-WM820 has 0.02 second of delay/latency. If you are shooting 25p, each frame measures 0.04 seconds. If you are shooting at 29.97p, each frame measures about 0.03 seconds. According to Aldo Cugnini’s Maintaining lip sync 2008 article in TV Technology :

For film, the accuracy of the location of the sound record and corresponding picture should be within ±0.5 film frames, or about ±22ms. For video, ITU and others have suggested that the thresholds of timing detectability are about +45ms to -125ms, and the thresholds of acceptability are about +90ms to -185ms. The ATSC recommends that the sound program never lead the video program by more than 15ms and not lag the video program by more than 45ms (±15ms).

Using this information as a guide, the Maono AU-WM820 20 ms official worst-case lag is close to the ±22ms maximum limit for film at 24 fps, but fortunately does not reach it or surpass. For video, the official Maono AU-WM820 audio lag compared to the video is well within the acceptable windows established by the ATSC and the ITU. For those producers who want to be even more accurate than the ATSC and ITU specs, Final Cut Pro can edit sub-frame audio down to 1/80th of a second and the Fairlight section of DaVinci Resolve can move audio by a single sample according to Charles Bennett. If you record audio at 48 kHz (see 48kHzAlliance.com) as you should, that’s forty eight thousand samples per second.

Outdoor recordings and observations

For these recordings, no filtering, compression or other effects were used. For this outdoor test, I first wanted to determine whether the signal would be strong enough at a half city block distance here in Coral Gables/Miami, Florida, US. The signal quality was fine at that distance, as long as Sandra did not face away from the camera. I also wanted to see how well the windscreen would handle the breeze, and I believe it worked well.

Half a block away:

Closer:

Next, we did a recording at a much shorter distance of only about 14 meters (or about 46 feet) where she finally walks towards the camera while speaking.

Option to use an external mic of different types

As I explained previously, the Maono AU-WM820 transmitter has a TRS 3.5 mm input to plug in an external microphone. That can include a lavalier microphone with a TRS 3.5 mm (like the one normally included, but I did not receive it with my review unit), a shotgun mic terminating in TRS 3.5 mm that works with bias voltage (“plugin power”), a handheld condenser microphone that works with bias voltage (“plugin power”) and properly fitted for TRS 3.5 mm plug (i.e. the MXL MM130, with a TRS adapter)…

…or even a dynamic handheld microphone when used together with the iRig Pre 2 pre-preamp from IK Multimedia, since its TRRS plug automatically adjusts to behave like a TRS when appropriate, as I covered in the review. Of course, you would also need to use an XLR coupler as indicated below:

This photo accompanied my article called Directly attach iRig Pre HD to an ENG omni dynamic mic but the same XLR coupler works with the iRig Pre 2, which is the one to use with the Maono AU-WM820 wireless transmitter if you want to use a dynamic ENG microphone with it. I personally verified that a dynamic ENG microphone works perfectly with the Maono AU-M820 this exact way with the iRig Pre 2.

Ratings

Build quality and appearance

Connectivity

Ease of setup

Sound quality

(In its price range)

Live monitoring from the receiver

Wind protection with included windscreen

Conclusions

The Maono AU-WM820 represents is a good value for under US$100. I am impressed with the appearance, compactness, build quality, connectivity, ease of setup and sound quality in its price range. The 20 ms latency issue is indeed noticable to the ear when recording but acceptable for lip sync as explained in the article, since it’s within allowable tolerances of the ATSC and the ITU. For more information, visit the Maono product page here.

Photo credit

Many of the photos of the AU-WM820 system are courtesy of Maono.
